Create base plan
Create Base Plan – Postpaid and Prepaid

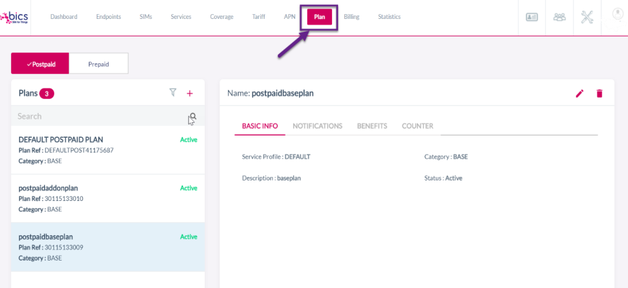

1. On the top menu, click Plan to view the Rate Plan details. Refer to the following screen.
Figure 1 Plan
By default, the Postpaid Plan screen is displayed.
To create a base plan for prepaid connection, click Prepaid tab and follow the subsequent steps

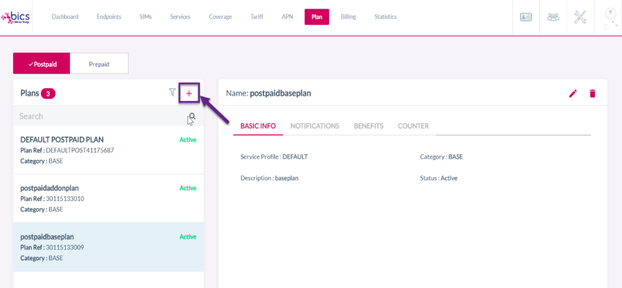

2. Click
![](../__attachments/519704574/image-20230525-070052.png?inst-v=b29dfd95-f8c3-43a0-b54a-bb13c3159858)
to add a new prepaid plan. Refer to the following screen.
Figure 2 add plan

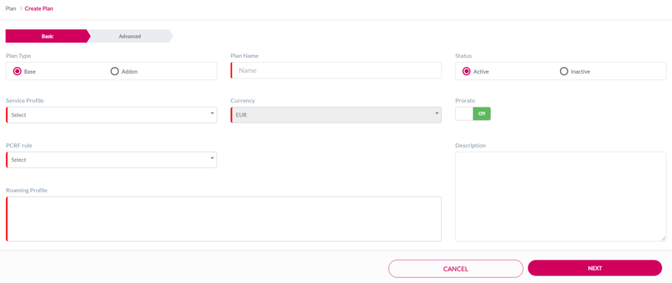

3. After clicking the button, the following screen is displayed. By default, the Plan type is Base.
Figure 3 Rate plan – Base
4. Enter or select the following information in the corresponding fields.
Field | Description |
---|---|
Basic Information | |
Plan Type | Base Plan - Base plans are the default plans attached during provisioning. An endpoint can have only one base plan. |
Plan Name | Enter a name for the Plan |
Status | Select the plan status in the drop-down list. For example, Active or In-Active. |
Service Profile | Select the service profile for the Rate plan in the drop-down list. |
Description | Enter a brief description of the plan. |
Currency | Depending on the currency of the Enterprise, currency type is auto-populated. |
Prorate | If Prorate button is ON ,it indicates whether monthly recurring charges and benefits of a postpaid base plan should be prorated in the first month/cycle. |
PCRF Rule | Select the PCRF rule in the drop-down list. For example, |
Roaming Profile | This field is displayed when you select "Base" as plan type. |

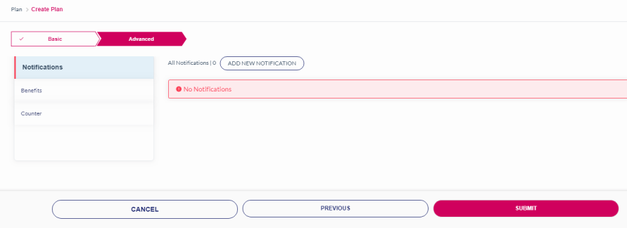

5. Click Next. The Advance details screen is displayed. By default, the Notification detail is displayed.
Figure 4 Advance details
