How to setup data streams and callback API's
In the tools menu you can setup data streams and callback API’s
You can setup maximum 3 data streams per account.

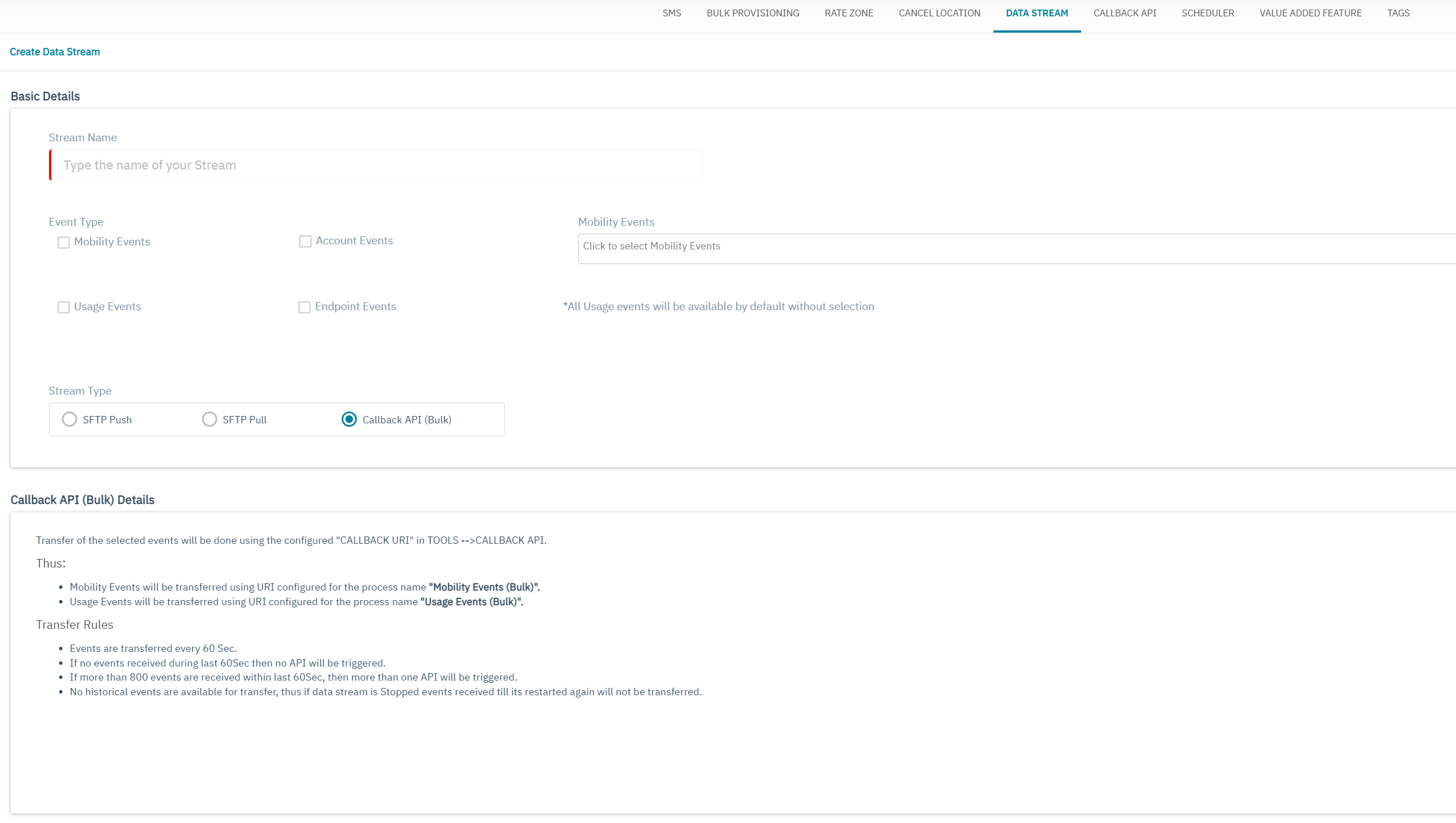

Choose a name and Event type for your data stream.
Mobility Event
Usage Events
Account Events
Endpoint Events
For stream type Callback API.

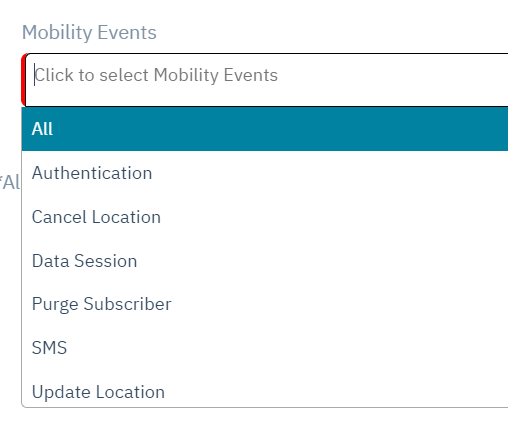

For the mobility events you can choose to receive all event type or only the Authentication, Cancel Location, Data session, purge subscriber, SMS or update location events.
Transfer of the selected events will be done using the configured "CALLBACK URI" in TOOLS -->CALLBACK API.
Thus:
Mobility Events will be transferred using URI configured for the process name "Mobility Events (Bulk)".
Usage Events will be transferred using URI configured for the process name "Usage Events (Bulk)".
Account Events will be transferred using URI configured for the process name "Account Events (Bulk)".
Endpoint Events will be transferred using URI configured for the process name "Endpoint Events (Bulk)".
Transfer Rules
Events are transferred every 60 Sec.
If no events received during last 60 Sec then no API will be triggered.
If more than 800 events are received within last 60 Sec, then more than one API will be triggered.
No historical events are available for transfer, thus if data stream is Stopped events received till its restarted again will not be transferred.

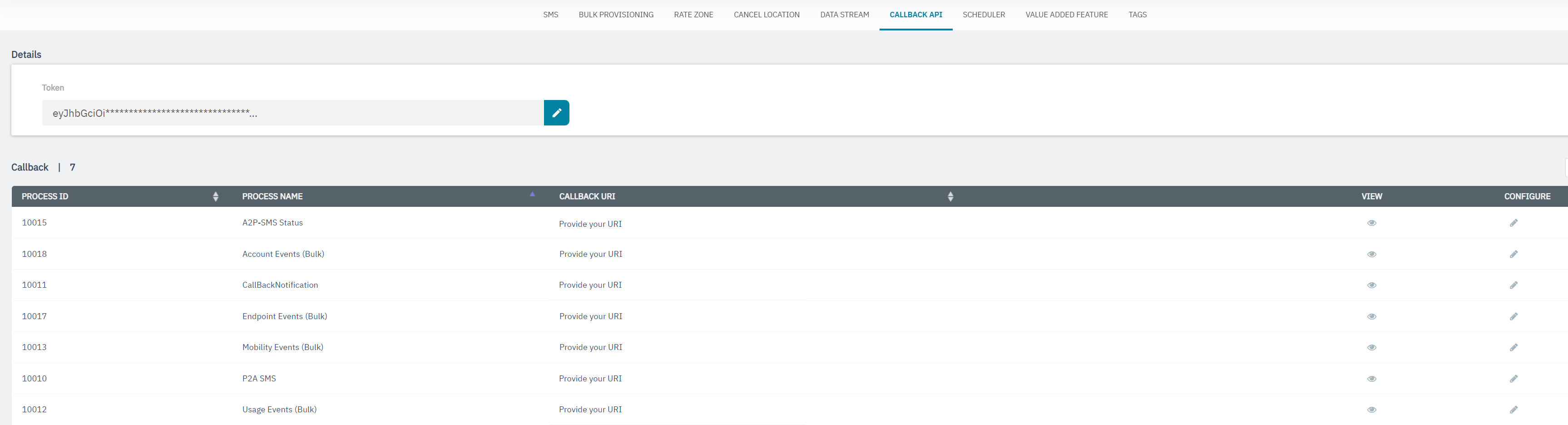

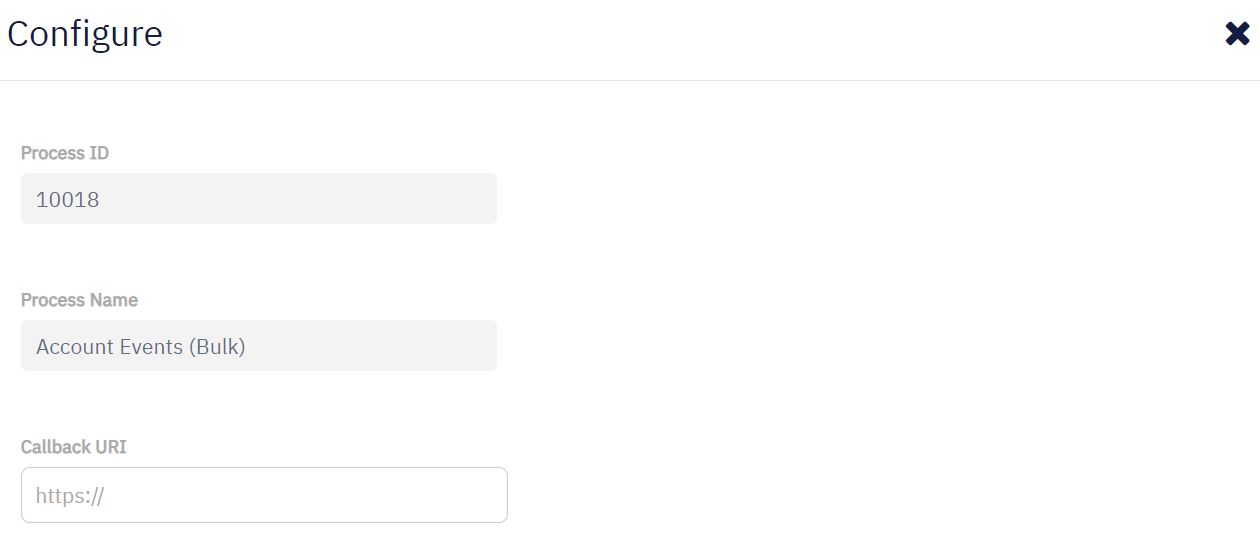

Configure the Callback API and fill in the URL to you server that can receive the messages.
