View bill
View bill
1. On the top menu, click Billing to view the Billing details. Refer to the following screen.

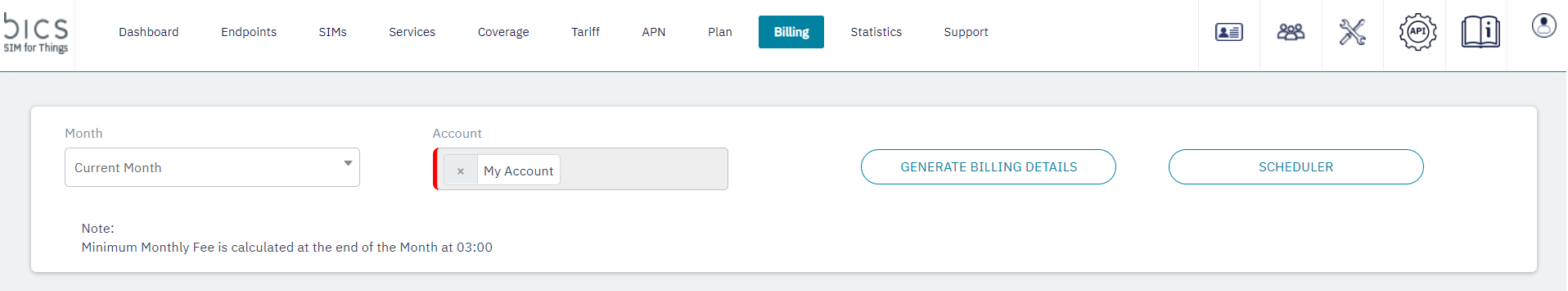

Figure 1 Billing
The following Billing details are displayed on the screen.
Category headers | Sub-category headers | Column headers | Description |
|---|---|---|---|
One Time Fees |
| Charging date | Timestamp when the one time fee was charged, in format “DD/MM/YYYY HH24:MI”, without seconds |
Name | Name of the charge | ||
Description | Not available today, will be added later with other story | ||
Amount | Amount charged for the one time fee, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
Recurring Fees |
| Recurrence | Recurrence as configured in “Factor” + “Validity” of the recurring fee |
Name | Name of the charge | ||
Description | Not available today, will be added later with other story | ||
Amount | Amount charged for the recurring fee, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
Benefits |
| Charging date | Timestamp of charging = timestamp of activation (for OneTime or Recurring AddOns) or renewal (for Recurring AddOns only) of the AddOn, in format “DD/MM/YYYY HH24:MI”, without seconds |
Name | Name of the AddOn plan | ||
Description | Description of the AddOn plan | ||
Ratezone | Ratezone as configured in the AddOn plan | ||
Recurrence | Type of the charge (“OneTime”/”Recurring”) configured in the AddOn plan | ||
Activated by | Type of activation (“Activation on Subscription” → “Subscription”/”Activation on Usage” → ”Usage” ) as configured in “Activated By” of the AddOn plan | ||
Amount | Amount charged for the AddOn plan, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
| Type | Category of Dynamic Benefits (pooled or non-pooled) | |
AddOn Name | Name of the Dynamic Benefit | ||
No of SIMs | Number of SIMs for which the “SIM & Benefit Fee” in the Dynamic Benefit is charged | ||
SIM & Benefit Fee | Price per SIM as configured in the “SIM & Benefit Fee” in the Dynamic Benefit | ||
Recurrence | Mode (“OneTime”/”Recurring”) configured in the MDB. | ||
Activated by | Type of activation (“Immediate” → “Subscription”/”Later” → “Usage”) as configured in the “SIM Activation Fee Action” in the Dynamic Benefit | ||
Amount | Amount charged for the SIM management fee of the Dynamic Benefit, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
Services |
| Ratezone | Ratezone as configured in the tariff |
Volume (MB) in Benefit | Volume in MB of Data usage which are not charged according to the configured tariff as they are covered in a benefit (any kind: Base plan, AddOn plan or Dynamic Benefit) | ||
Volume (MB) | Volume in MB of Data usage which are charged according to the configured tariff | ||
Price per unit | Price per “Unit” + “Unit type” as configured in the tariff (with all available decimals) | ||
Unit | “Unit” + “Unit type” as configured in the tariff | ||
Amount | Amount charged for Data usage according to the configured tariff, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
| Type | Sub-service (A2P/P2A/P2P On-net/P2P Off-net) as shown in the transaction details | |
Ratezone | Ratezone as configured in the tariff (if available) | ||
No of SMS in Benefit | Count of SMS which are not charged according to the configured tariff as they are covered in a benefit (any kind, Base plan, AddOn plan or Dynamic Benefit) | ||
No of SMS | Count of SMS which are charged according to the configured tariff | ||
Price per SMS | Price per SMS count as configured in the tariff (with all available decimals) | ||
Amount | Amount charged for SMS usage according to the configured tariff, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
| Ratezone | Ratezone as configured in the tariff | |
Volume (MB) in Benefit | Always 0 for now as NB-IoT benefits are not available today | ||
Volume (MB) | Volume in MB of NB-IoT usage which are charged according to the configured tariff | ||
Price per unit | Price per “Unit” + “Unit type” as configured in the tariff (with all available decimals) | ||
Unit | “Unit” + “Unit type” as configured in the tariff | ||
Amount | Amount charged for NB-IoT usage according to the configured tariff, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
SIM Based Fees |
| Activated by | Type of activation (“Immediate“ → “Subscription“/“Later“ → “Usage“) as configured in the “Action Type” in the SIM activation fee |
No of SIMs | Number of SIMs for which the SIM activation fee is charged | ||
Price per SIM | Price per SIM as configured in the SIM activation fee (with all available decimals) | ||
Amount | Amount charged for the SIM activation fee, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
| Type | Type of charging as configured in the “Action Type” (and slab details) in the SIM management fee | |
Recurrence | Recurrence as configured in “Factor” + “Validity” in the SIM management fee | ||
Activated By | Type of activation (“Immediate“ → “Subscription“/“On first usage“ → “Usage“) as configured in the “Action Type” in the SIM management fee | ||
No of SIMs | Number of SIMs for which the SIM management fee is charged | ||
Price per SIM | Price per SIM as configured in the SIM management fee (with all available decimals) | ||
Price per Threshold | Price for the SIMs within the Threshold as configured in the SIM management fee (with all available decimals) | ||
Amount | Amount charged for the SIM management fee, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
| Type | Feature as configured in “Applicable for” in the feature based SIM management fee and “Base Fee“/”Additional Fee” | |
No of SIMs | Number of SIMs for which the feature based SIM management base fee is charged, also filled for additional fee | ||
Price per SIM | Price per SIM as configured in the feature based SIM management base fee, empty for additional fee (with all available decimals) | ||
No of Networks | Number of networks for which the feature based SIM management additional fee is charged, empty for base fee | ||
Price per Network | Price per network as configured in the feature based SIM management additional fee, empty for base fee | ||
Amount | Amount charged for the feature based SIM management base/additional fee, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
| Type | Category of Dynamic Benefits (pooled or non-pooled) | |
AddOn Name | Name of the Dynamic Benefit | ||
No of SIMs | Number of SIMs for which the “SIM Activation Fee” in the Dynamic Benefit is charged (not necessarily the same as under Benefits as the “SIM & Benefit Fee” is always charged on subscription) | ||
Price per SIM | Price per SIM as configured in the “SIM Activation Fee” in the Dynamic Benefit (with all available decimals) | ||
Activated by | Type of activation (“Immediate“ → “Subscription“/“Later“ → “Usage“) as configured in the “SIM Activation Fee Action” in the Dynamic Benefit | ||
Amount | Amount charged for the SIM activation fees of the Dynamic Benefit, with correct currency symbol, with 2 decimals and dot as decimal separator | ||
Minimum Fee |
| Type | Amount as configured in the Monthly minimum fee, with correct currency symbol, with 2 decimals and dot as decimal separator |
| Monthly Recurring Charges | Negative of the total amount charged for Monthly Recurring Charges | |
| Dynamic Benefits | Negative of the total amount charged for SIM management fees of Dynamic Benefits | |
| SIM Management | Negative of the total amount charged for SIM management fees | |
Feature Based SIM Management | Negative of the total amount charged for feature based SIM management fees | ||
| Data Usage | Negative of the total amount charged for Data usage | |
SMS Usage | Negative of the total amount charged for SMS usage | ||
NB-IoT Usage | Negative of the total amount charged for NB-IoT usage | ||
| Amount charged for the Monthly minimum fee, with correct currency symbol, with 2 decimals and dot as decimal separator. |
2. Enterprise can view the billing details of the previous months from the Months drop-down list. Refer to the following screen.

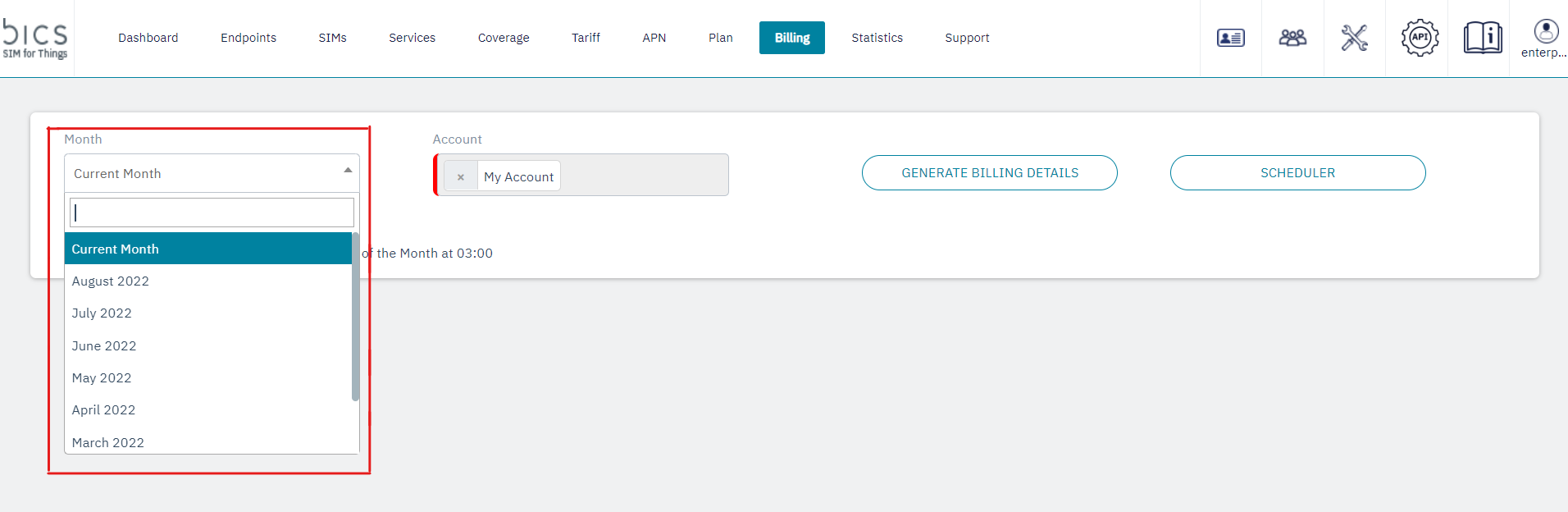

Figure 2 Month
3. To view the Billing details of previous months, select the required month in the drop-down list. Refer to the following screen.

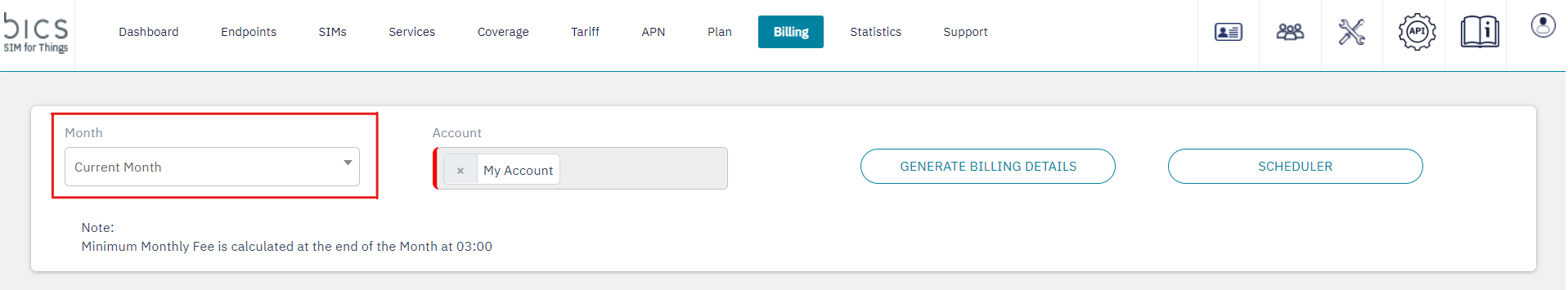

Figure 3 Billing details
3. Account dropdown, In the Account dropdown by default it will be selected as My Account.

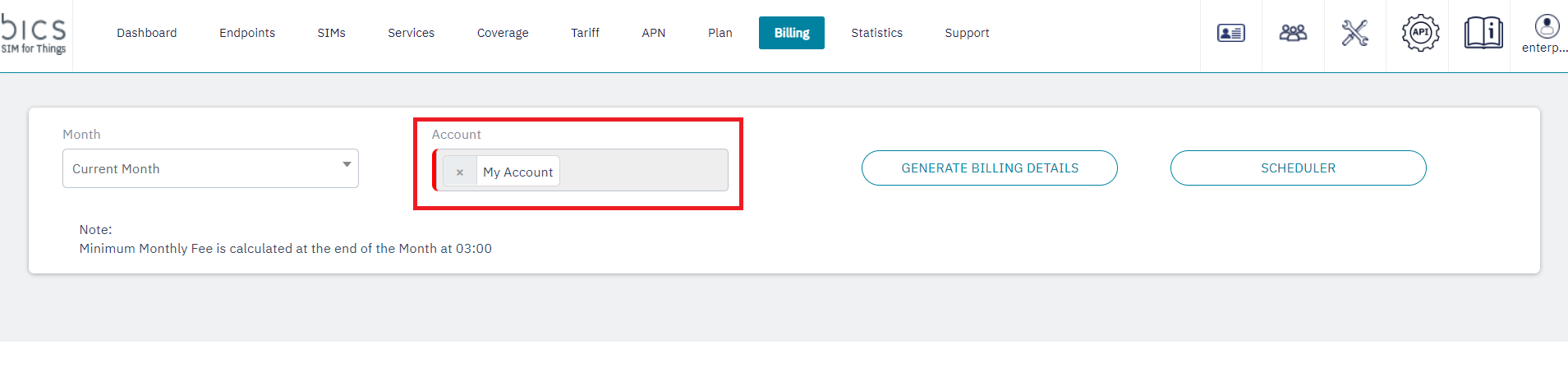

Figure 4 Account details
4. You can see the billing details of a particular Account using the Generate Billing Details.

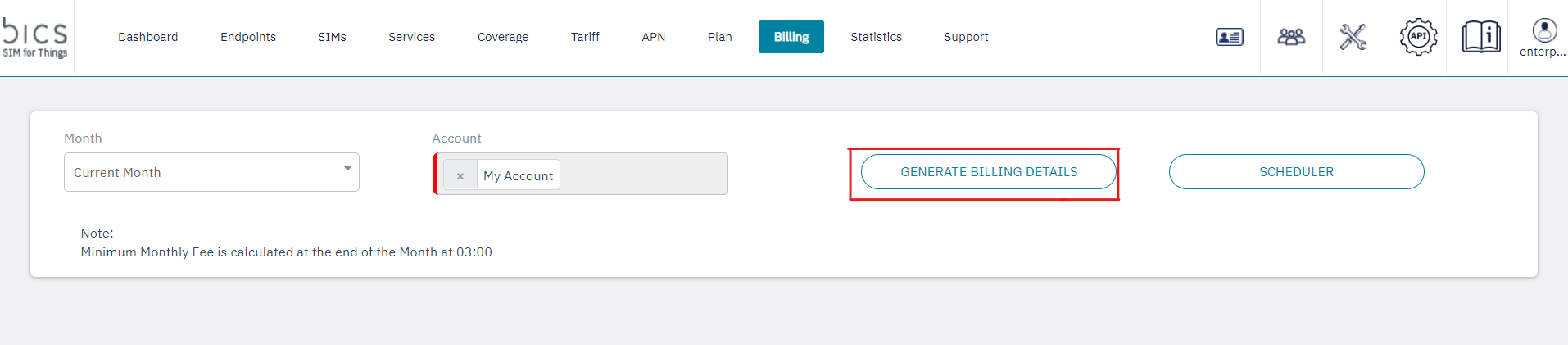

Figure 5 Generate Billing Details
5. You can now expand the view of your Billing Detail list by clicking the Expand view of your Billing Detail list by clicking the Expand All button.

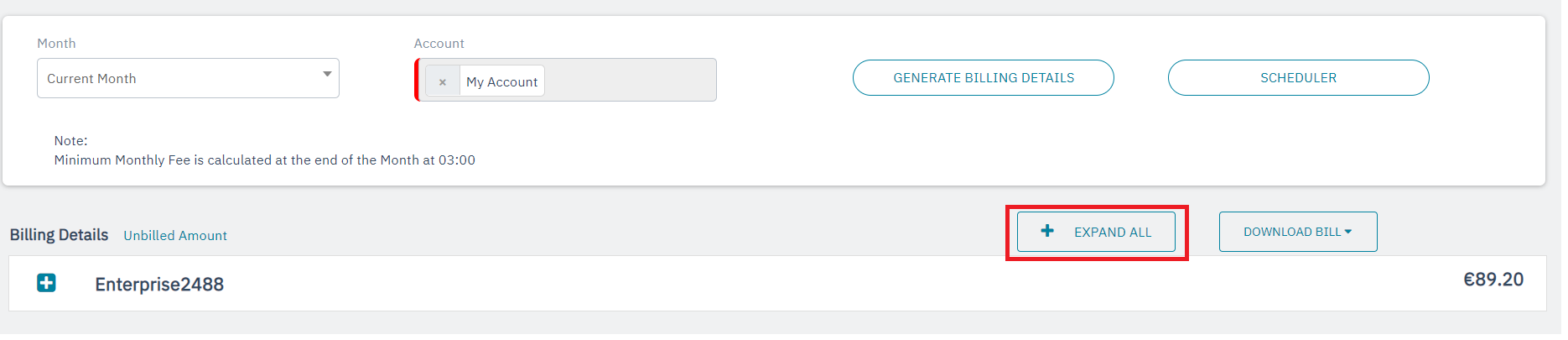

Figure 6 Expand All
6. You can now collapse the view of your Billing Detail list by clicking the Collapse All button.

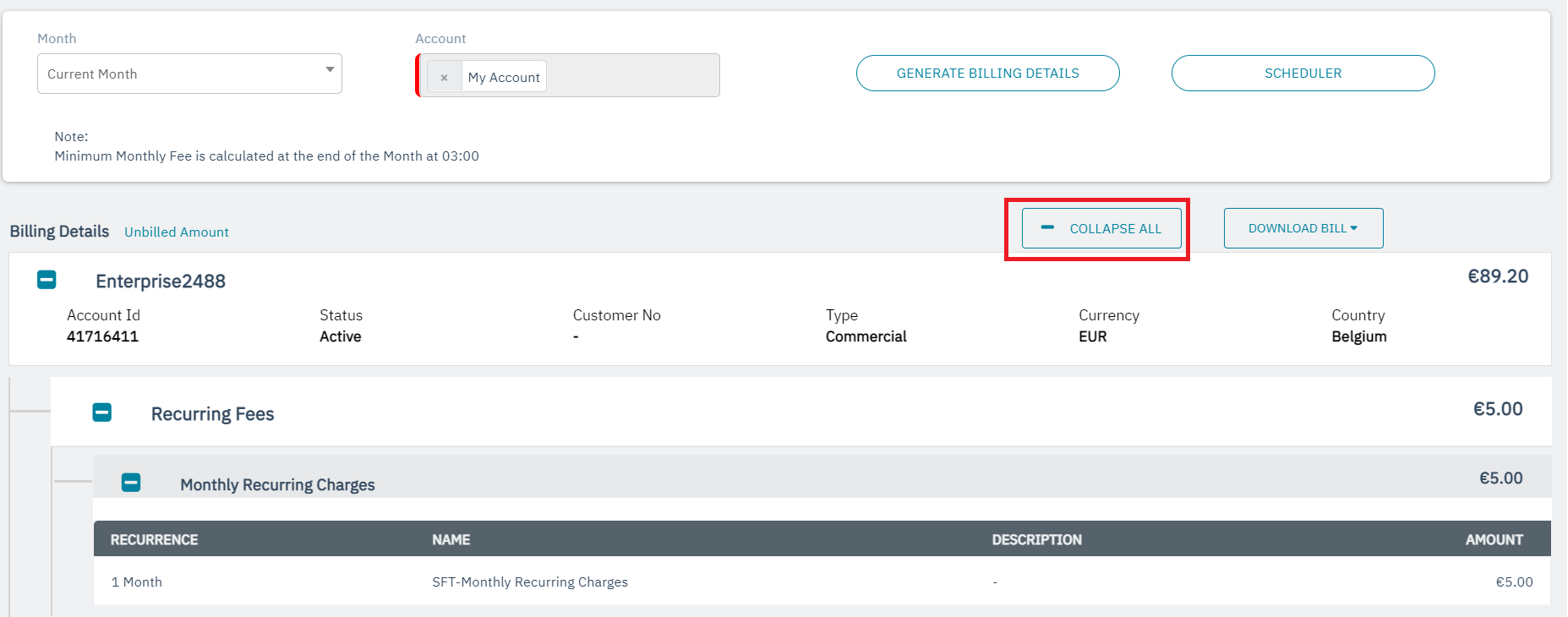

Figure 6 Collapse All
7. Download Bill, select the required format from the Download Bill dropdown.

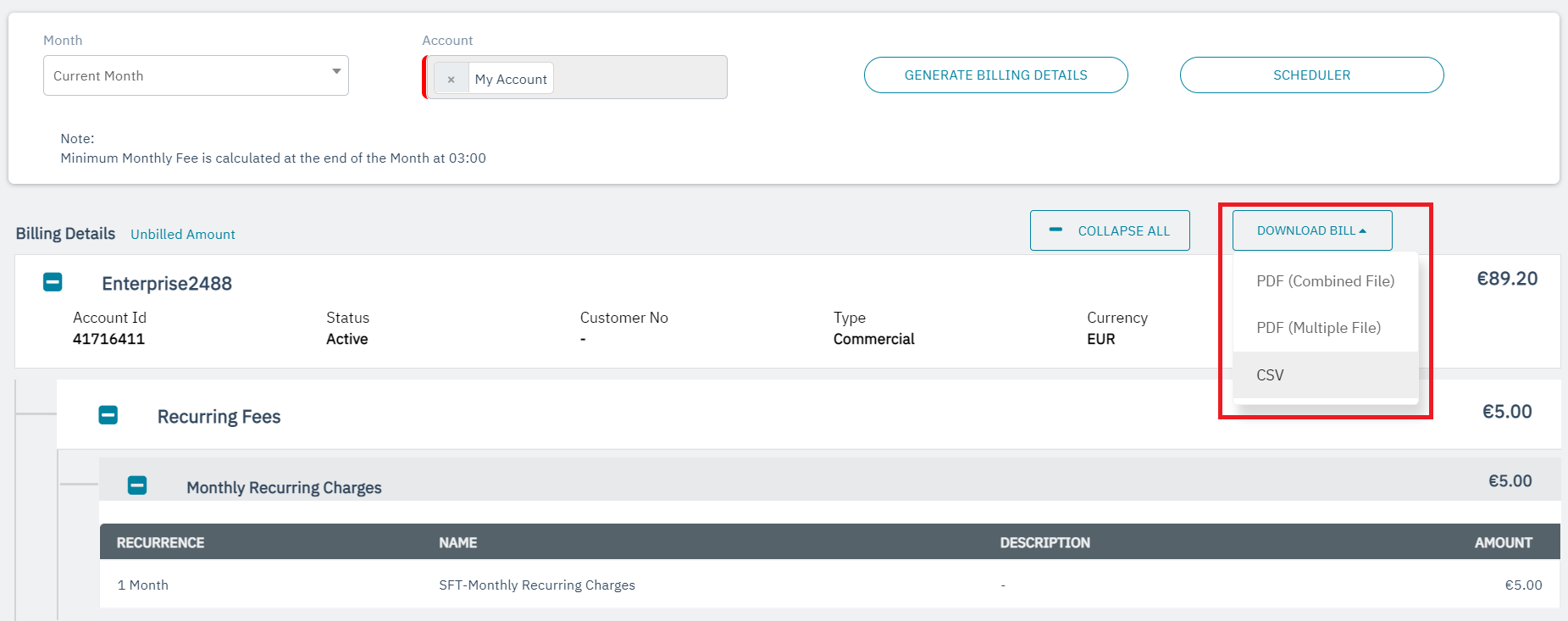

Figure 7 Download Bill
