View Callback API

View CALLBACK API

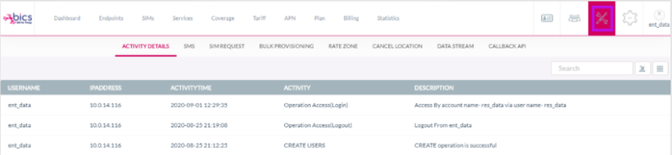

On the top menu, click

to view the settings menu. Refer to the following screen.

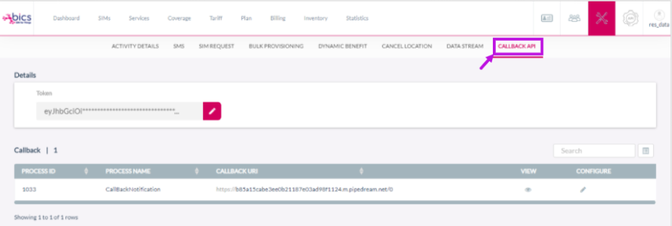

2. On the Settings screen, click CALLBACK API to view the CALLBACK API details. Refer to the following screen

3. The following CALLBACK API details are displayed on the screen.

Field	Description
Token	Indicates the field where a user can upload (JWT)token. Using tooltip we should define what kind of token is supported. The token value in view mode should not be fully visible. Only first 10 characters. The rest of the token should be hidden and not possible to be copied. Note: JWT token format consist of three parts separated by dots Header Payload Signature Ex: eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJWb2RhZm9uZSIsImF1Z CI6IkFDQ0VTUyIsInNjb3BlcyI6IkFETUlOIiwiaXNzIjoiSW9 UUHJvZHVjdGlvbiIsImlhdCI6MTYwMjY4MTM3MSwiZXhwIjoxN jAyNjk1NzcxfQ.Wh47h30K-mKE7iMkRnJHZKo0TC0E-FbbEI_v SU0CJD7oSBmPIoai2F5CLiOeK-xel0ucEZHIs955-NnXhj6h4A
Process Id	Indicates the specific and unique ID of the each Process.
Process Name	Indicates the name of the process as we define it in the backend during process integration with callback and define customer tier id so that based on tier id show the process list to customers.
Callback URI	Indicates the URI provided by customer. This is relative to the Callback domain. If non provided it should have the "Provide your URI" as a feed back. •maximum URL Length: Must not exceed 2,000 characters. (was 300 chars) •Path Segment Length: Each segment (between slashes /) must be no longer than 255 characters. (was 50 chars) •Scheme Requirement: Only https:// URLs are accepted. •Allowed characters: Only below mentioned special characters are allowed, except these characters, no other special characters are allowed in the URL as we have some security checks and regex validations in place. •dot . •hyphen - •underscore _ •forward slash / •colon : When colon character is used when port number is used in the URL.
View	Click on View icon to see the sample api call matching the corresponding callback case.
Configure	Click on Configure icon to edit the Callback URI.

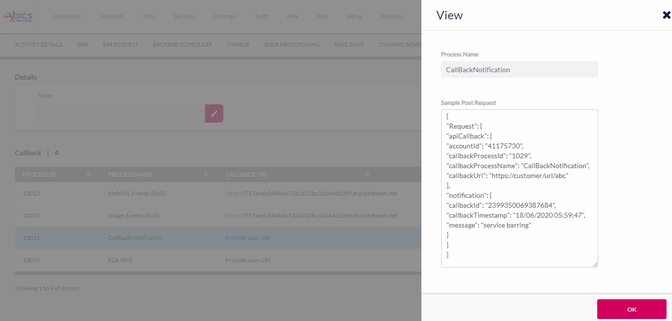

View of API CALL

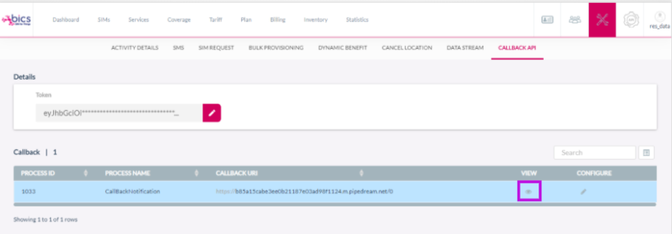

To see the API CALL View of the selected, click on

to view icon the quick description of API CAll. Refer to the following screen

4. The following CALLBACK API details are displayed on the screen.

Field	Description
Process Name	Indicates the name of the process as we define it in the backend during process integration with callback and define customer tier id so that based on tier id show the process list to customers. Non-editable
Sample Post Request	Indicates the sample API call matching the corresponding callback case.

Supporting CALLBACK APIs

The following CALLBACK APIs are displayed on the screen.

PROCESS ID	PROCESS NAME	Description
10010	P2A SMS	The Callback for sending P2A SMS callback.
10011	CallBackNotification	The Callback for sending CallBackNotification callback.
10012	Usage Events (Bulk)	The Callback for sending Usage events callback.
10013	Mobility Events (Bulk)	The Callback for sending Mobility events callback
10015	A2P-SMS Status	The Callback for sending A2P SMS callback.
10018	Account Events (Bulk)	The Callback for sending Account events callback
10017	Endpoint Events (Bulk)	The Callback for sending Endpoint events callback
