View Destination Group
1. On the top menu, click Coverage to view the Destination Group details. Refer to the following screen.

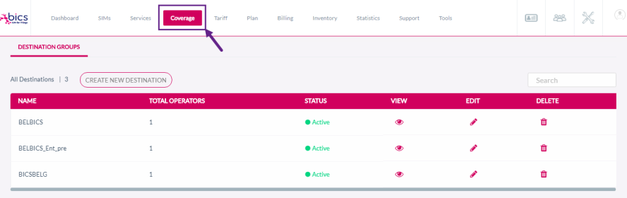

Figure 1 Coverage
2. During OEM reseller account configuration on attaching the base plan the OEM TEST coverage will be auto created in reseller's account.

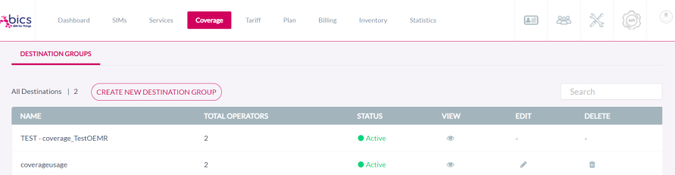

Figure 2 OEM TEST Coverage
In reseller level auto created OEM TEST coverage naming convention will be as per below.
TEST – {name of Destination Group given by BICS}
OEM TEST coverage will not be able to edit and delete.
The following destination group details are displayed on the screen.
Field | Description |
Name | Indicates the name of the Destination group |
Total Operators | Indicates the number of operators attached to the destination group. |
Status | Indicates the status of the Destination group. For example, Active or In-active |
View | Click to view the operators attached to the Destination group (see below for more information). |
Edit | Click to edit the Destination group details (see below for more information). |
Delete | Click to delete the Destination group (see below for more information). |
3. On the Destination group screen, click
to view the operators attached to the Destination group. Refer to the following screen

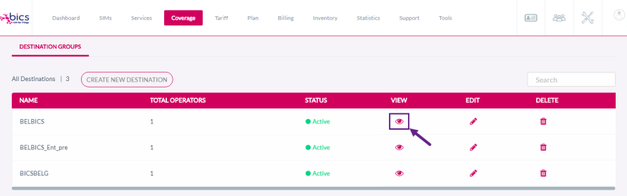

Figure 3 View Operator
4. After clicking the button, the following screen is displayed.

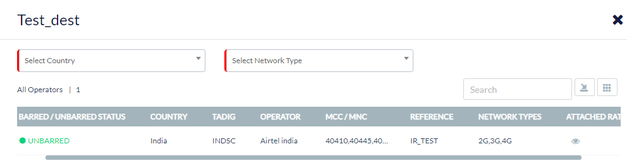

Figure 4 Operator list
The following operator details are displayed on the screen.
Field | Description |
Barred/Unbarred status | Indicates the status of the operator. |
Country | Indicates the origin country of the operator. |
TADIG | Indicates the unique TADIG code of the operator. |
Operator | Indicates the name of the operator attached to the destination group |
MCC/MNC | Indicates the unique Mobile Country Code or Mobile Network Code of the operator. |
Reference | Indicates the name of the global supplier list. |
Network Types | Indicates the Network Types supported by the Network of the operator. |

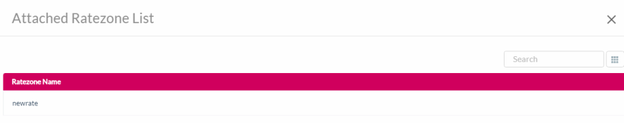

Attached Rate zone | Click to view the ratezone attached to the operator. |
