View Tariff and Ratezone
Viewing Tariff
Using the Tariff menu, the enterprise can only view the tariffs for the services. Its not allowed to add a Tariff / Ratezone for the Enterprise account. As a reseller, the option to add a Tariff / Ratezone is available.
Viewing Tariff

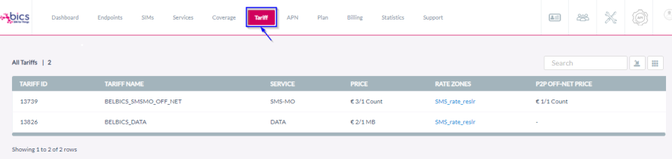

In the top menu, click Tariff to view the Tariff details. Refer to the following screen.
Figure 1 Tariff
The following Tariff details are displayed on the screen.
Field | Description |
Tariff ID | Indicates the unique reference ID of the Tariff |
Tariff Name | Indicates the name of the Tariff |
Service | Indicates the service to which the Tariff is created |
Price | Indicates the price per unit of service under the corresponding Tariff |
Ratezone | Indicates the Ratezone under which the Tariff belongs |
P2P Off-net Price | Indicates the price per unit for service offered by the tariff |
Viewing Ratezone

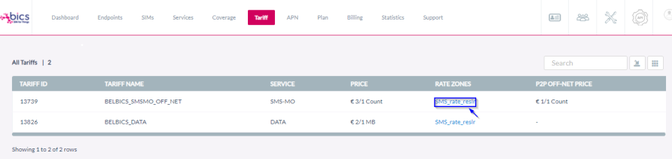

On the Tariff screen, click the Ratezone to view the Ratezone detail. Refer to the following screen.
Figure 2 Ratezones
After clicking the button, the Ratezone detail screen is displayed.

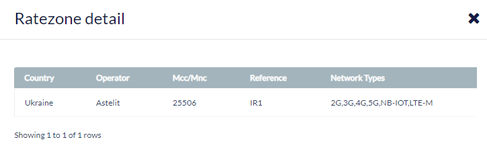

Figure 3 Ratezone details
The following Ratezone details are displayed on the screen.
Field | Description |
Country | Indicates the country to which the operator belongs |
Operator | Indicates the name of the Operator |
MCC/MNC | Indicates the unique Mobile Country Code/Mobile Network Code of the operator |
Reference | Indicates the name of the global supplier list |
Network Types | Indicates the name of the supported Network Types of the operator |
