[OEM] Create inventory plan

4.6.5 Create OEM Inventory Plan – Postpaid and Prepaid

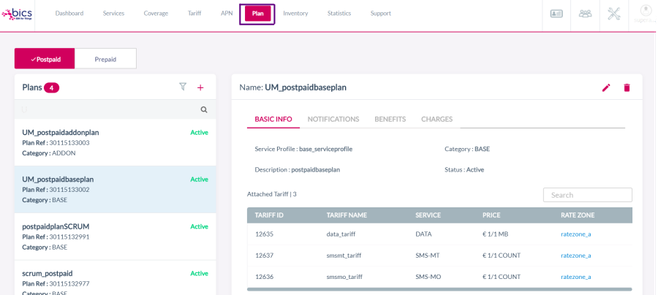

On the top menu, click Plan to view the Rate Plan details. Refer to the following screen.

Figure 89 Plan

Note: By default, the Postpaid Plan screen is displayed.
Note: To create an OEM Inventory plan for prepaid connection, click the Prepaid tab, and follow the subsequent steps.

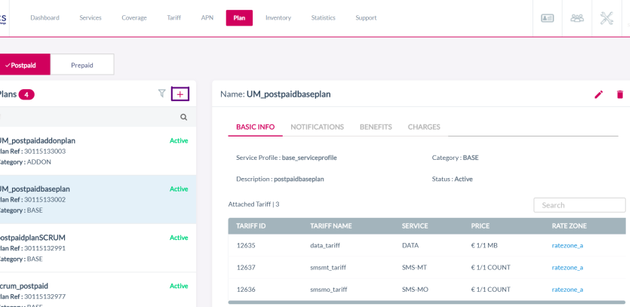

Click

to add a new postpaid plan. Refer to the following screen.

Figure 90 Add Plan

After clicking the button, the following screen is displayed.

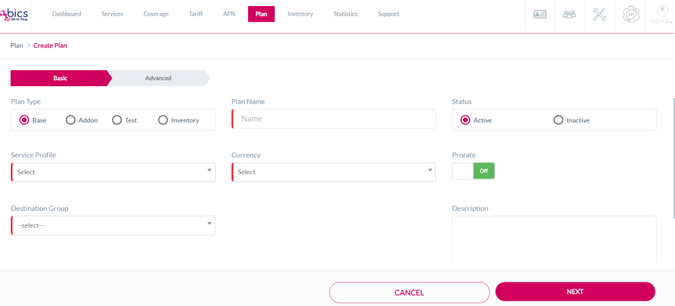

Figure 91 Rate plan – Base

Note: By default, the Plan type is selected as Base.

Select the Plan type as

Inventory. Refer to the following screen.

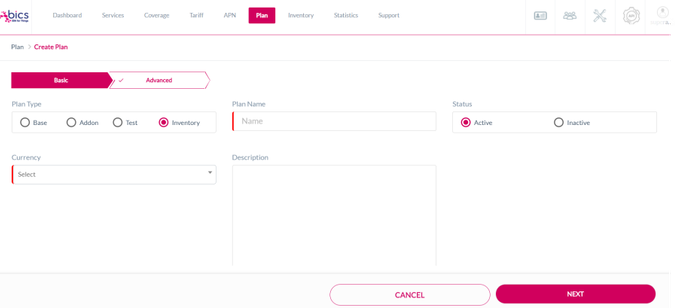

Figure 92 OEM plan – Inventory

Enter or select the following information in the corresponding fields. Fields marked with "

|" are mandatory.

Field	Description
Basic Information
Plan Type	Inventory Plan - Inventory plans are the OEM plans attached during provisioning. An endpoint can have only one Inventory plan.
Plan Name	Enter a name for the Plan
Status	Select the plan status in the drop-down list. For example, Active or In-Active. Note: You cannot attach In-Active plans to customers.
Description	Enter the brief description of the plan.
Currency	Select the currency for the OEM Test plan

Click

Next.
The ADVANCE details screen is displayed.

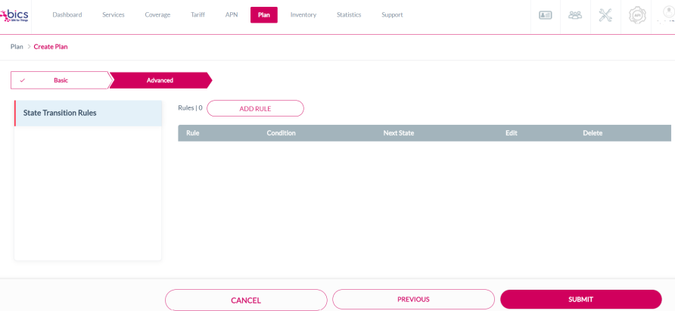

Figure 93 Advanced page

Click on Add Rule to add. Refer to the following screen.

Figure 94 State Transition Rule – Adding rule

10. On click of add rule button following screen appears.

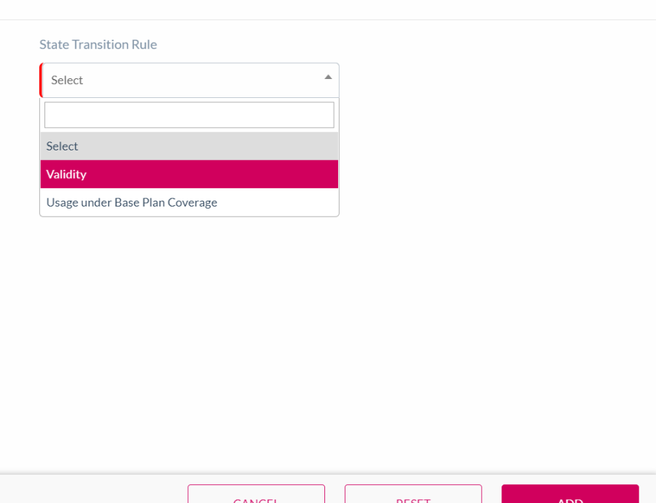

Figure 95 State Transition Rule types

11. Enter or select the following information in the corresponding fields. Fields marked "|'are mandatory.

State Transition Rule has two values in the dropdown.

Validity - OEM endpoints state transition and change of plan from Inventory to base plan happens based on the validity specified.
Usage under Base Plan Coverage – OEM endpoint state transition happens when a charging request initiates from an operational (Base plan) coverage.

Based on the state transition rule selection following fields appears.

Validity
When you select state transition rule as "Validity", the following details are displayed

Field	Description
Fixed period after activation	There will be two sub – fields for fixed period after activation First field need to enter numeric values – which represents the number of validities – Enter the required numeric values Next field represents the frequency – Day, Month, Year – Select the required frequency

Field

Description

Fixed period after activation

There will be two sub – fields for fixed period after activation

First field need to enter numeric values – which represents the number of validities – Enter the required numeric values
Next field represents the frequency – Day, Month, Year – Select the required frequency

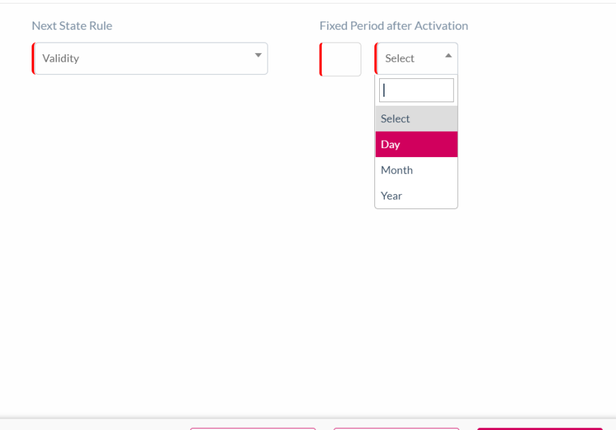

Figure 96 State Transition Rule – Validity

Usage under Base Plan Coverage
Select usage under base plan coverage as state transition rule and click on add.

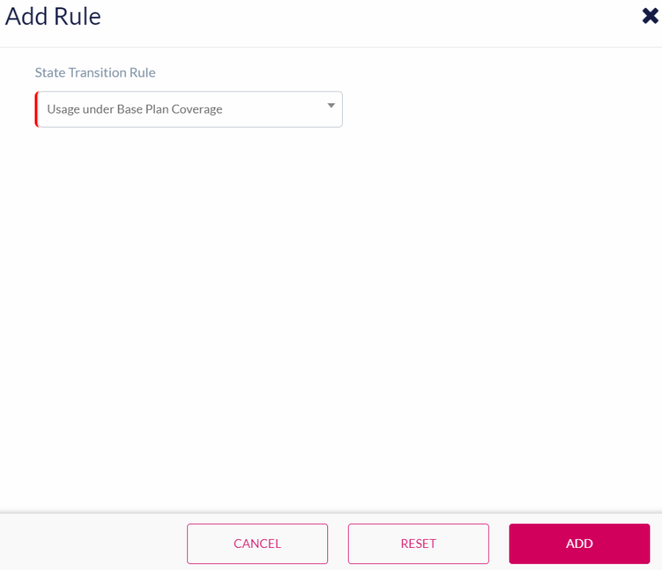

Figure 97 Next State Rule – Operational Usage

12. After clicking add button following screen appears.

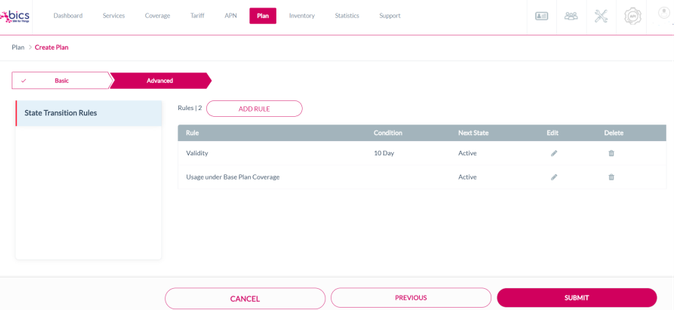

Figure 98 Next State Rules

13. After adding State Transition Rules, the following details are displayed on the screen.

Field	Description
State Transition Rule	Indicates the state transition rules added. Validity Usage
Condition	Indicates the condition of each state transition rule Validity – Number of days or months or year validity Operational Usage – N/A
Next State	This field will be automatically populated based on the rule creation. Indicates the next state for each rule. Validity – Active Operational Usage – Active
	to edit the Validity, Usage under base plan coverage details.
	to delete the Validity, Usage under base plan coverage rules.

14. Click Submit.

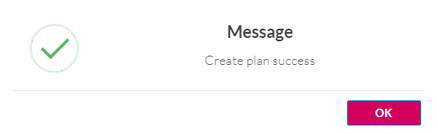

A confirmation message is displayed, indicating that the OEM Test plan is created successfully.

Figure 99 Confirmation Message

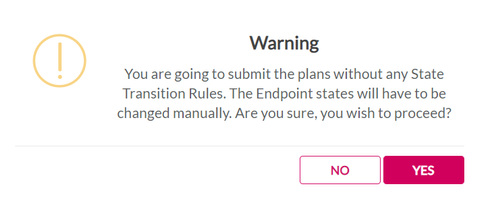

15. In the OEM Inventory Plan without adding state transition rule if submit button is clicked, we get a warning message. Refer to the following screen.

Figure 100 Warning Message

If no state transition rules configured in the Inventory plan, then endpoint state change must be performed manually.
