View Data stream

View Data Stream

1. On the top menu, click

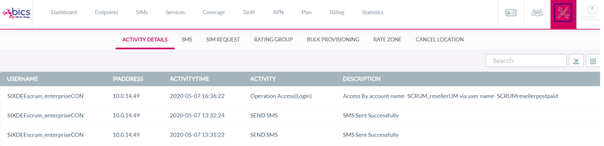

to view the settings menu. Refer to the following screen.

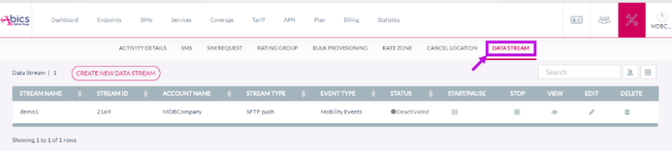

2. On the Settings screen, click DATA STREAM to view the Data stream details. Refer to the following screen

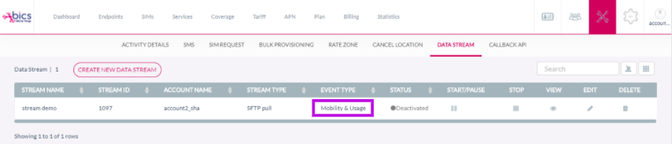

If selected both events, in view section. Refer to the following screen.

3. The following Data Stream details are displayed on the screen.

Field	Description
Stream Name	Indicates the name of the Data Stream.
Stream ID	Indicates the unique ID of the Data Stream.
Account Name	Indicates the account name of organisation by whom the Data stream was created.
Stream Type	Indicates the type of Data Stream. SFTP Push and SFTP Pull are the two options for this, SFTP Push – Files will be pushed to the remote SFTP server SFTP Pull – Files will be pulled from remote SFTP server Callback API(Bulk)- Callback will be initiated to customer DC
Event Type	Indicates the type of Events that are collected from the specific stream E.g. Mobility Events or/and Usage Events
Status	Indicates the present status of Data Stream. Activation and deactivation of datastream will be controlled at BICS level. Once a data stream is created by enterprise by default it will be in deactivated state. In this state all other buttons like start/stop/pause will be disabled For Callback API(Bulk)- Once a data stream is created by enterprise by default it will be in Stopped state.
Start/Pause	Start/Pause button will be active only when the status is set to Activated for the data stream by BICS On click of start button, system will change the stream status to start. System will start generating the file in this state. Start button is available to users with the right permissions. On click of pause button, system will change the stream status to pause. In Pause status, stream is producing the files without them been forwarded to the customer. Pause button is available to users with the right permissions. For Callback API(Bulk) stream will not have the option to pause the stream .The pause will be gray out
Stop	Stop button will be active only when the stream status is either Running/Paused On click of stop button, system will change the stream status to stop. System will not produce any files in stop state. Stop button is available to users with the right permissions. For Callback API(Bulk) stream type-system will stop collect and sending events to customer DC
View	Click on View icon to see the summary view of the Data Stream.
Edit	Click on Edit icon to edit the SFTP push or pull details of the Data Stream. Edit icon is available to users with the right permissions
Delete	On click of delete button, system will remove the data stream from DB. Delete icon is available to users with the right permissions

Summary View of Data Stream

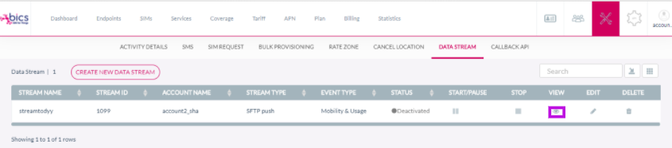

To see the summary of the selected Data Stream, click on

to view icon the quick description of data stream.Refer to the following screen

4. After clicking the button, the following screen is displayed

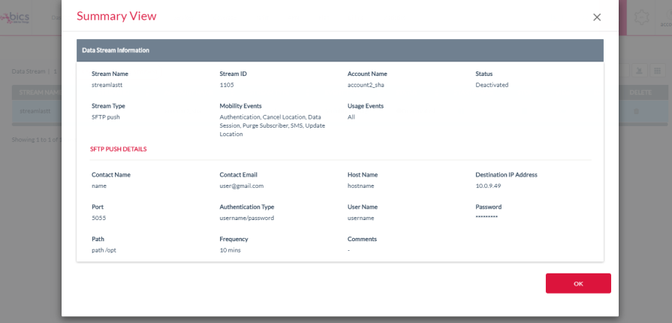

Summary View of SFTP Push with Authentication type as Username/password Data Stream and selected both events.

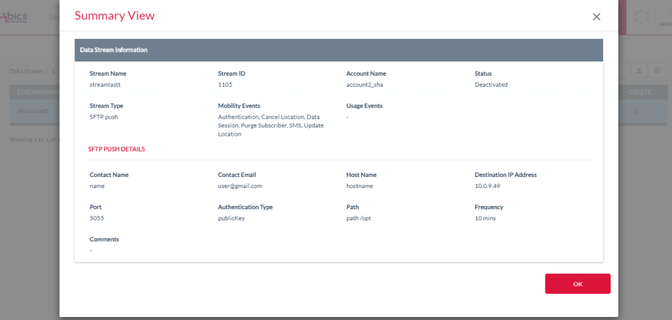

Summary View of SFTP Push with Authentication Type as Public/Private Key Data Stream and selected only Mobility Events.

The following Data Stream details are displayed on the summary screen of SFTP Push data stream.

Field	Description
Stream Name	Indicates the name of the Data Stream.
Stream ID	Indicates the unique ID of the Data Stream.
Account Name	Indicates the account name of organization by whom the data stream was created.
Status	Indicates the present status of Data Stream. Various statuses are Deactivated, Running, Stopped, Deleted, Paused.
Stream Type	Indicates the type of Data Stream. This will be SFTP Push in this scenario. SFTP Push – Files will be pushed to the remote SFTP server
Mobility Events	Shows the mobility events that were selected during the creation of data stream or/and Usage Events. If not selected it will show "– "only
Usage Events	Shows the Usage Events as All that were selected of Usage Events during the creation of data stream Usage Events will not have an option to select specific fields and all fields will be available by default. If not selected it will show "–" only
Contact Name	Indicates the name of the user that created the data stream
Contact Email	Indicates the email provided during the creation of data stream for contact.
Host Name	Indicates the host name of SFTP server, for BICS to connect and transfer the files.
Destination IP Address	Indicates the public IP of SFTP server, for BICS to connect and transfer the files.
Port	Indicates the port of SFTP server, for BICS to connect and transfer the files.
Authentication Type	Indicates the type of the authentication that will be used to connect to server. 1.Username/Password 2.Public/Private Key(BICS provided the public key based on the username(account)
User Name	Indicates the username of the account that will be used to connect to SFTP server. (if Authentication type- Username/Password)
Password	Indicates the password of the account that will be used to connect to SFTP server. (if Authentication type- Username/Password)
Path	Indicates the path relative to the home directory of the user.
Frequency	Indicates the frequency among 10 min, once per hour, once per day. how often you want files to be transfer to your server. By default, frequency with 10 min will be preselected.
Comments	Indicates the comments provided while creating data stream.

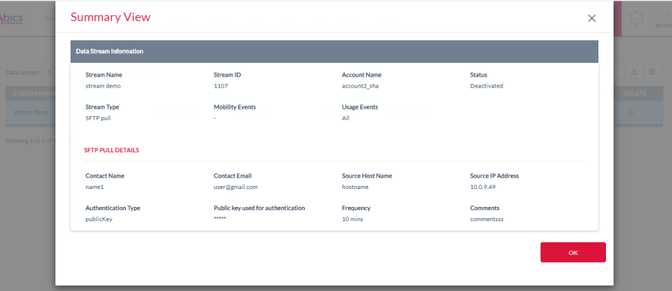

5. Summary View of SFTP Pull with Authentication Type as Public/Private Key Data Stream and selected only Usage Events.

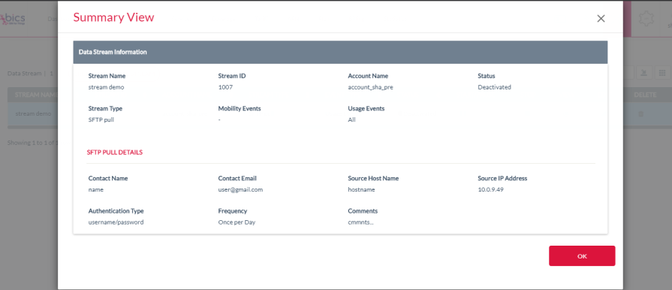

6. Summary View of SFTP Pull with Authentication Type Username/Password Data Stream and selected only Usage Events

The following Data Stream details are displayed on the summary screen of SFTP Pull data stream.

Field	Description
Stream Name	Indicates the name of the Data Stream.
Stream ID	Indicates the unique ID of the Data Stream.
Account Name	Indicates the account name of organization by whom the data stream was created.
Status	Indicates the present status of Data Stream. Various statuses are Deactivated, Running, Stopped, Deleted, Paused.
Stream Type	Indicates the type of Data Stream. This will be SFTP Pull in this scenario. SFTP Pull – Files will be pushed to the remote SFTP server
Mobility Events	Shows the mobility events that were selected during the creation of data stream or/and Usage Events. If not selected it will show "–" only.
Usage Events	Shows the Usage events that were selected during the creation of data stream. Usage Events will not have an option to select specific fields and all fields will be available by default. If not selected it will show "–" only
Contact Name	Indicates the User name of the user that created the data stream.
Contact Email	Indicates the email provided during the creation of data stream for contact.
Source Hostname	Indicates the host name of the server that will be connected to the SFTP server, for BICS to connect and transfer the files.
Source IP address(es)	Indicates the IP of the server that will be connected to the SFTP server, for BICS to connect and transfer the files.
Authentication Type	Indicates the type of the authentication that will be used to connect to server. 1.Username/Password 2.Public/Private Key(Enterprise to provide public key for the username(account) provided by BICS)
Public key used for authentication	Indicates the public key for the username(account) provided by BICS
Frequency	Indicates the frequency among 10 min, once per hour, once per day. how often you want files to be transfer to your server. By default, frequency with 10 min will be preselected.
Comments	Indicates the comments provided while creating data stream.

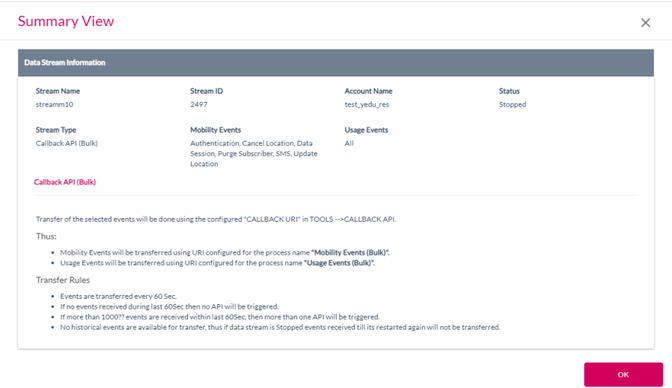

7. Summary View of Callback API(Bulk) Data Stream and selected Usage and Mobility Events

The following Data Stream details are displayed on the summary screen of Callback API(Bulk) data stream.

Field	Description
Stream Name	Indicates the name of the Data Stream.
Stream ID	Indicates the unique ID of the Data Stream.
Account Name	Indicates the account name of organization by whom the data stream was created.
Status	Indicates the present status of Data Stream. Various statuses are Deactivated, Running, Stopped, Deleted
Stream Type	Indicates the type of Data Stream. This will be Callback API(Bulk) in this scenario. Callback API (Bulk) – Callback will be initiated to customer DC
Mobility Events	Shows the mobility events that were selected during the creation of data stream or/and Usage Events. If not selected it will show " – " only.
Usage Events	Shows the Usage Events as All that were selected of Usage Events during the creation of data stream If not selected it will show "– " only
Callback API (Bulk)	Indicates the Callback API (Bulk) details
